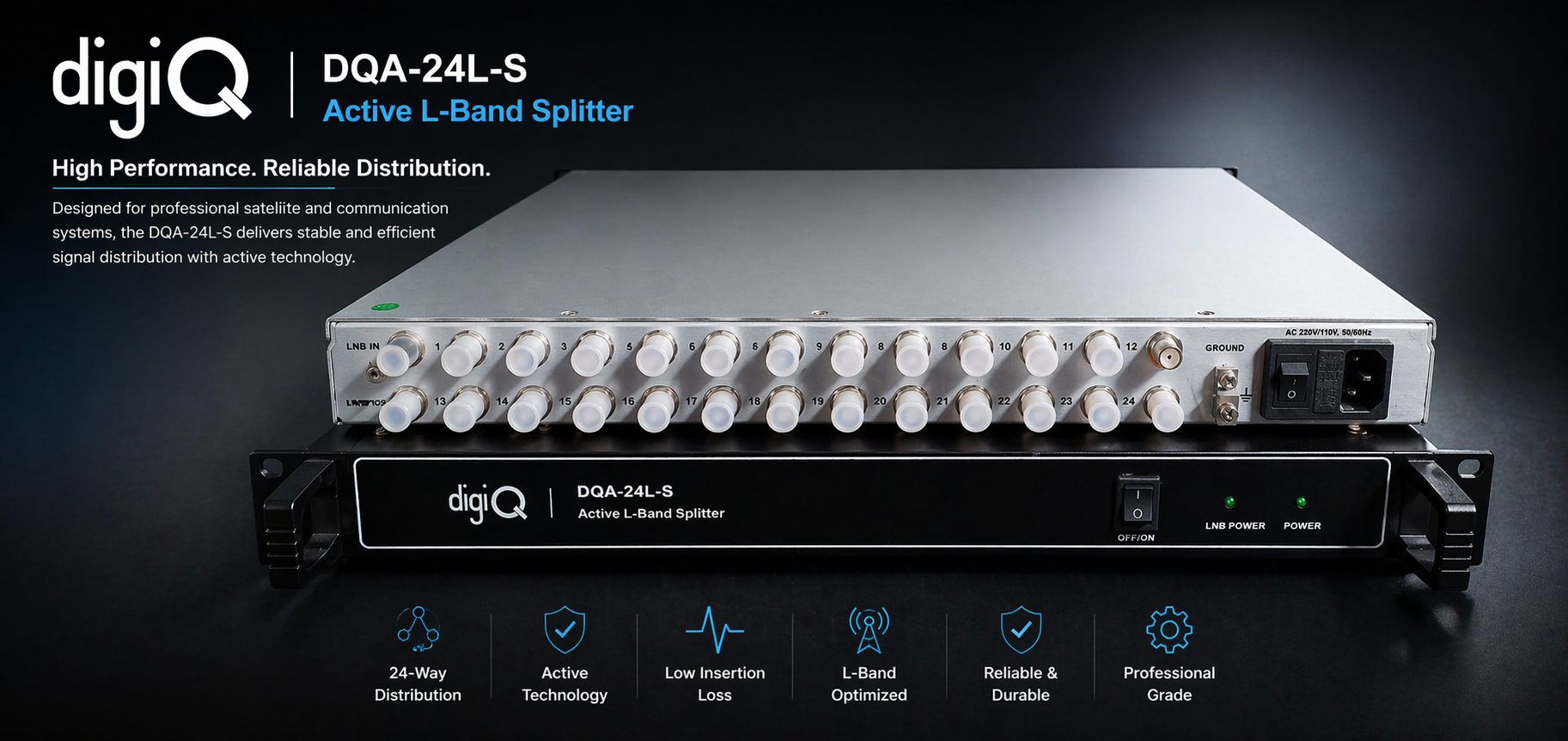

DigiQ DQA-24L-S 24 Way Active Splitter 950-2150 MHz | Zero Loss RF Satellite Signal Amplifier | LNB Power Control | SMATV Cable TV Distributor BD

🔹 Key Features:

• ✅ Model: DigiQ DQA-24L-S 24-Way Active Splitter
• 📡 Wide Frequency Range: 950–2150 MHz for satellite & RF applications
• ⚡ Built-in Amplification: Near zero signal loss, no need for external amplifier

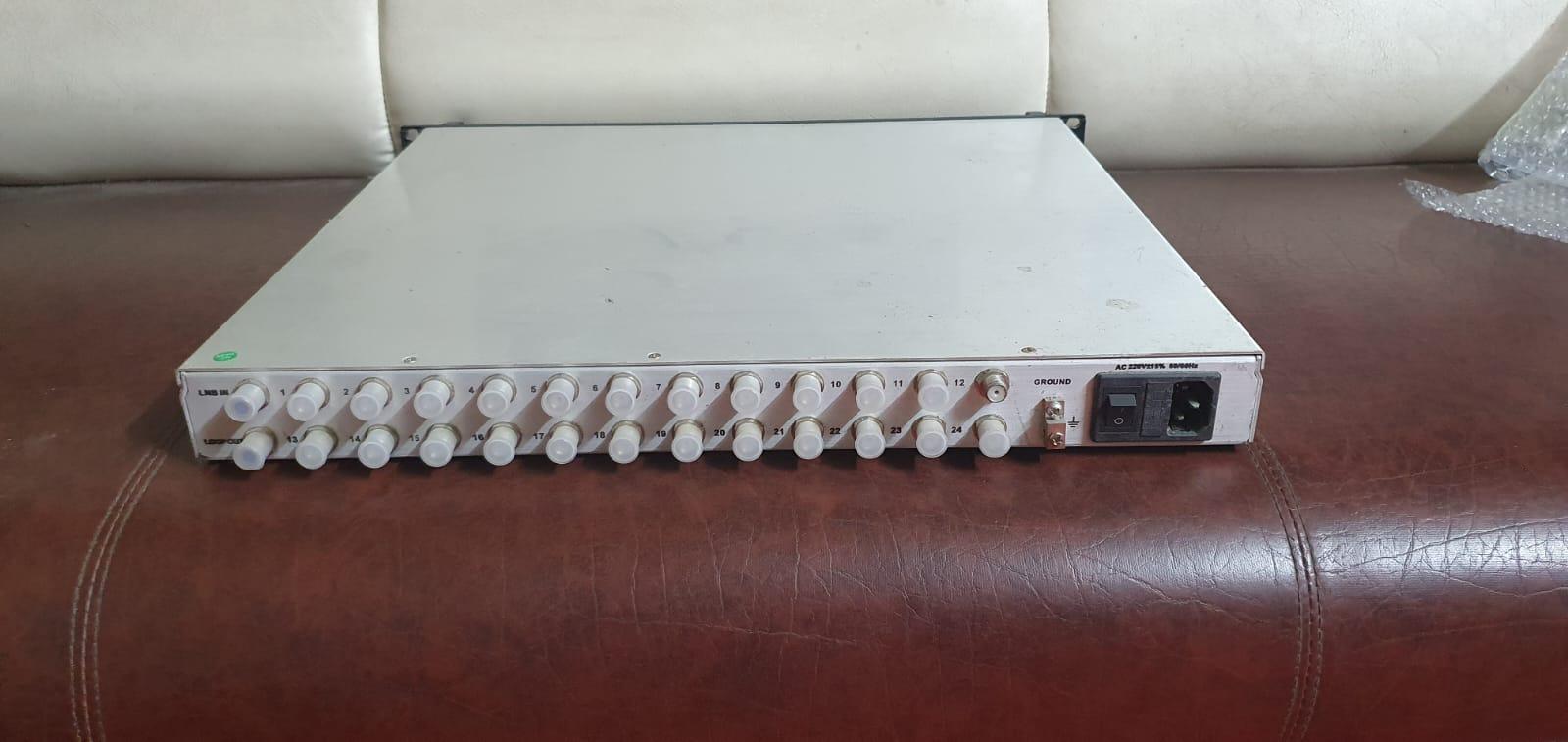

• 🔌 24 Output Ports: Distribute signal to multiple TVs/receivers efficiently

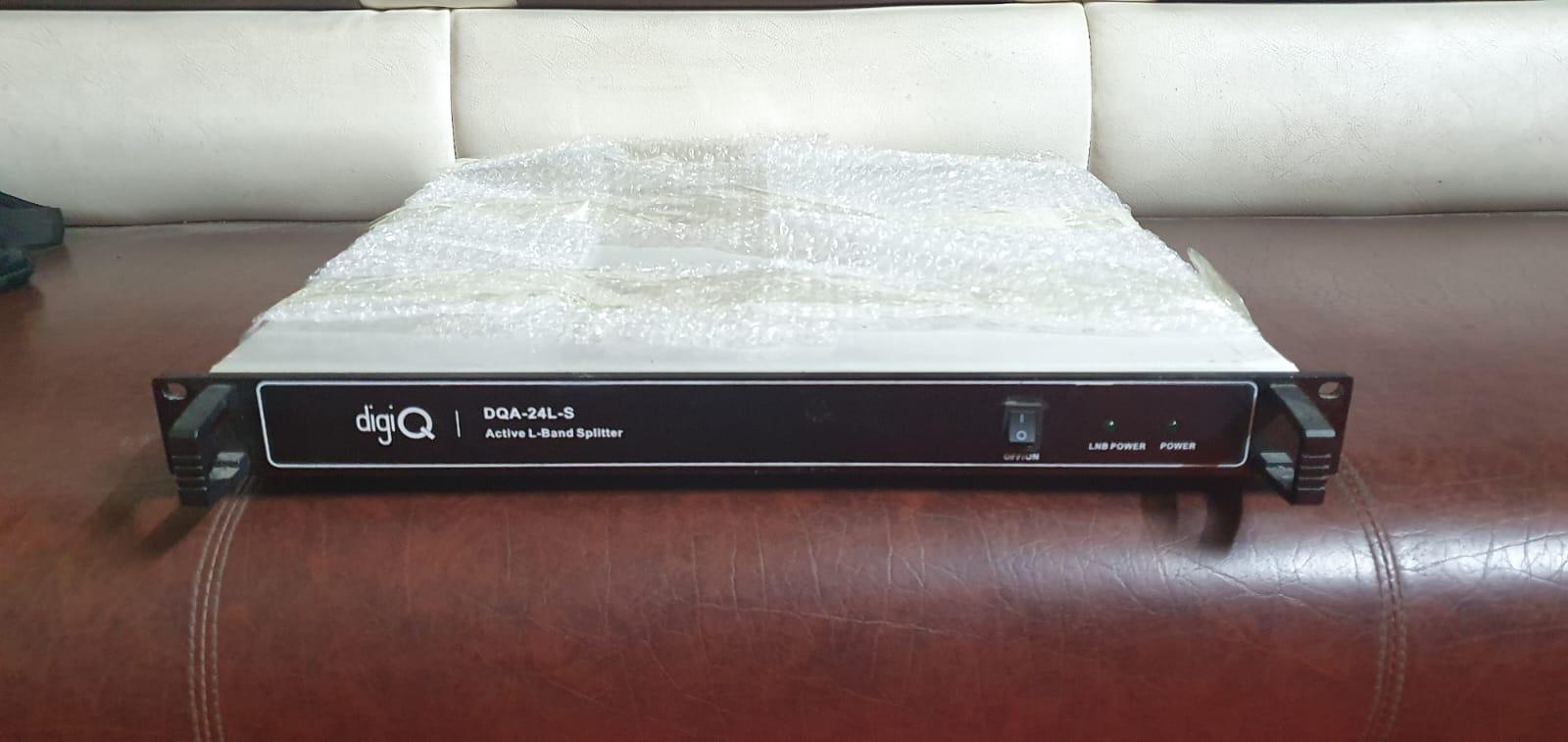

• 🔄 LNB Power Control: DC power ON/OFF switch from front panel
• 🛠️ Advanced Technology: Microstrip & SMT design for stable performance
• 🔒 High Isolation: Clear signal with minimal interference between ports
• 🏢 Commercial Grade: Suitable for SMATV, cable TV, hotels, apartments
• 🌡️ Reliable Performance: Consistent output across all connections
• 📦 Durable Build: Long-lasting and heavy-duty design

🔹 Ideal For:

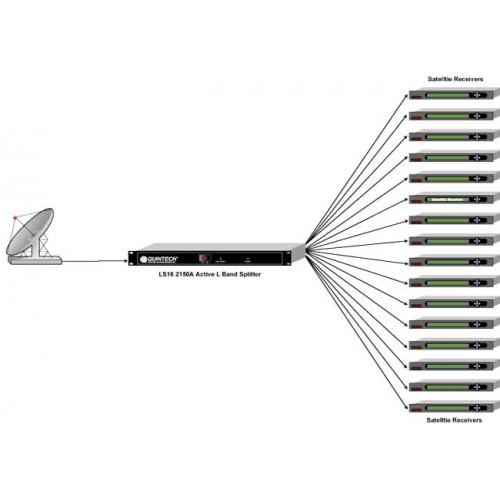

• Satellite TV distribution systems
• Multi-room setups (home, office, hotel)
• Cable TV networks
• Professional RF installations

🔹 Package Includes:

• 1 × DigiQ DQA-24L-S Active Splitter





  	LS24 2150A L-band Splitters	LS32 2150A   L-band Splitters	LS48 2150A   L-band Splitters	LS64 2150A   L-band Splitters
  Configuration	1x24 way Splitter	1x32 way Splitter	1x48 way Splitter	1x64 way Splitter
  Frequency	950-2150 MHz	950-2150 MHz	950-2150 MHz	950-2150 MHz
  Impedance	75 Ω	75 Ω	75 Ω	75 Ω
  P1dB	-10dBm	-10 dBm	-10 dBm	-10 dBm
  Insertion Loss	0 ± 2 dB	0 ± 2 dB	0 ± 2 dB	0 ± 2 dB
  Frequency Response	± 2 dB	± 2 dB	± 2 dB	± 2 dB
  Isolation	18 dB	18 dB	18 dB	18 dB
  Input Return Loss	12dB	12 dB	12 dB	12 dB
  Output Return Loss	12 dB	12 dB	12 dB	12 dB
  RF Connectors	Type “F”, 75 Ω	Type “F”, 75 Ω	Type “F”, 75 Ω	Type “F”, 75 Ω
  Power Requirements	18-24 VDC via 2-pin quick connect	18-24 VDC via 2-pin quick connect	18-24 VDC via 2-pin quick connect	18-24 VDC via 2-pin quick connect
  LNB Power	18 VDC	18 VDC	18 VDC	18 VDC
  Power Consumption	13 W	12 W	13 W	18 W
  Mechanical	2 RU (3.5”H x 19”W x 14”D)	2 RU (3.5”H x 19”W x 14”D)	3 RU (5.25”H x 19”W x 20”D)	3 RU (5.25”H x 19”W x 20”D)
  Options	Multiple units in a common chassis (dual, quad, etc.)
