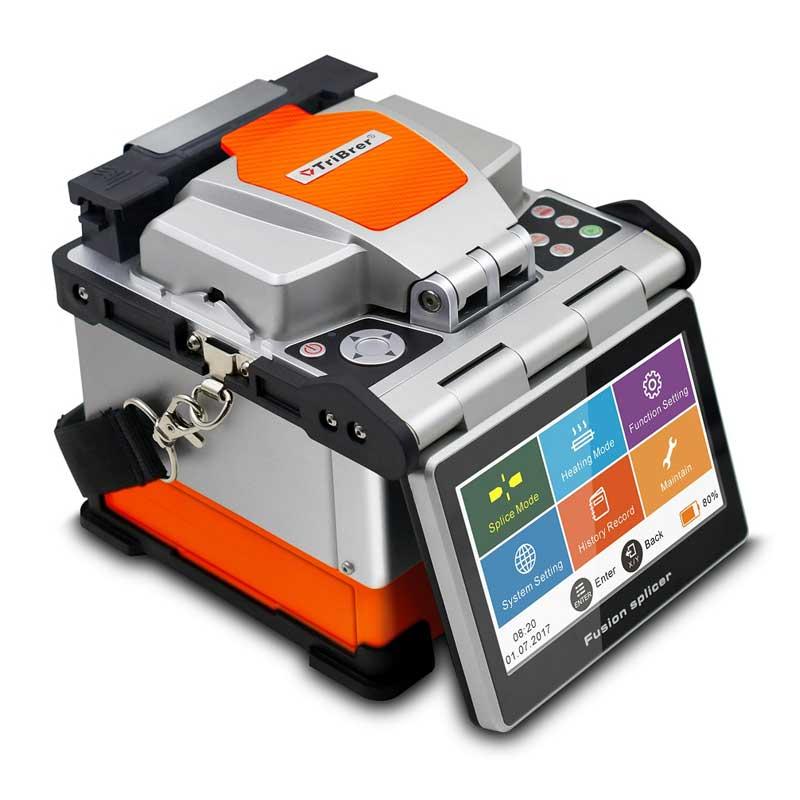

Lemon 3 is new standard core alignment splicing machine covering various splicing needs, such as multi-function fiber holder, integrated cooling tray, SOC slider, 8s splicing, 24s heating etc.. All these are made for efficient splicing.
SKU: DP-2443-M8QJ
Categories: Splicer Machine, TriBrer
5 inch color LCD display
8s splicing, 24 heating time

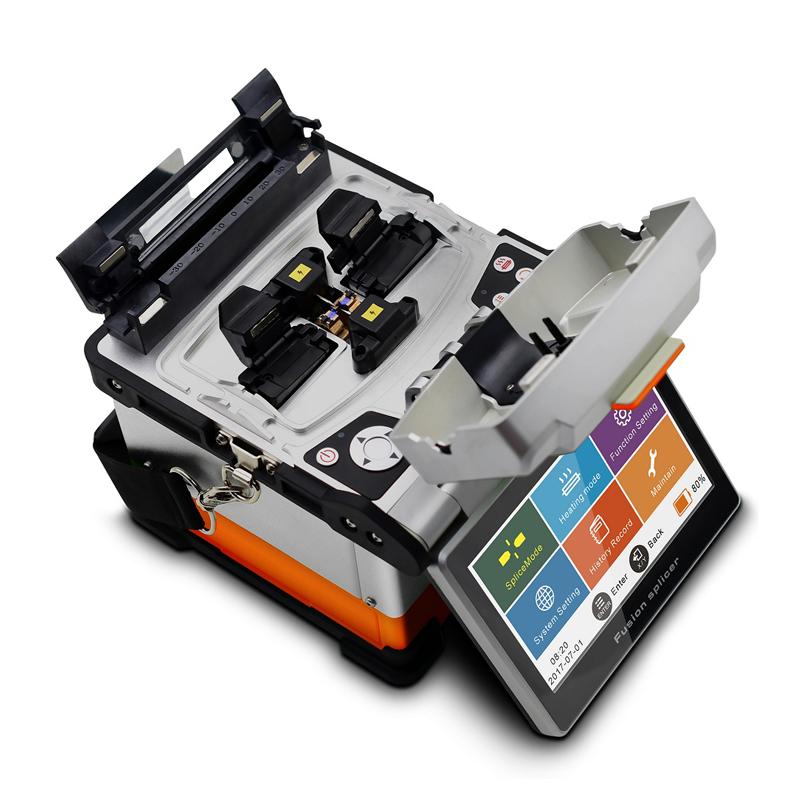

Multi-function fiber holder
Integrated cooling tray

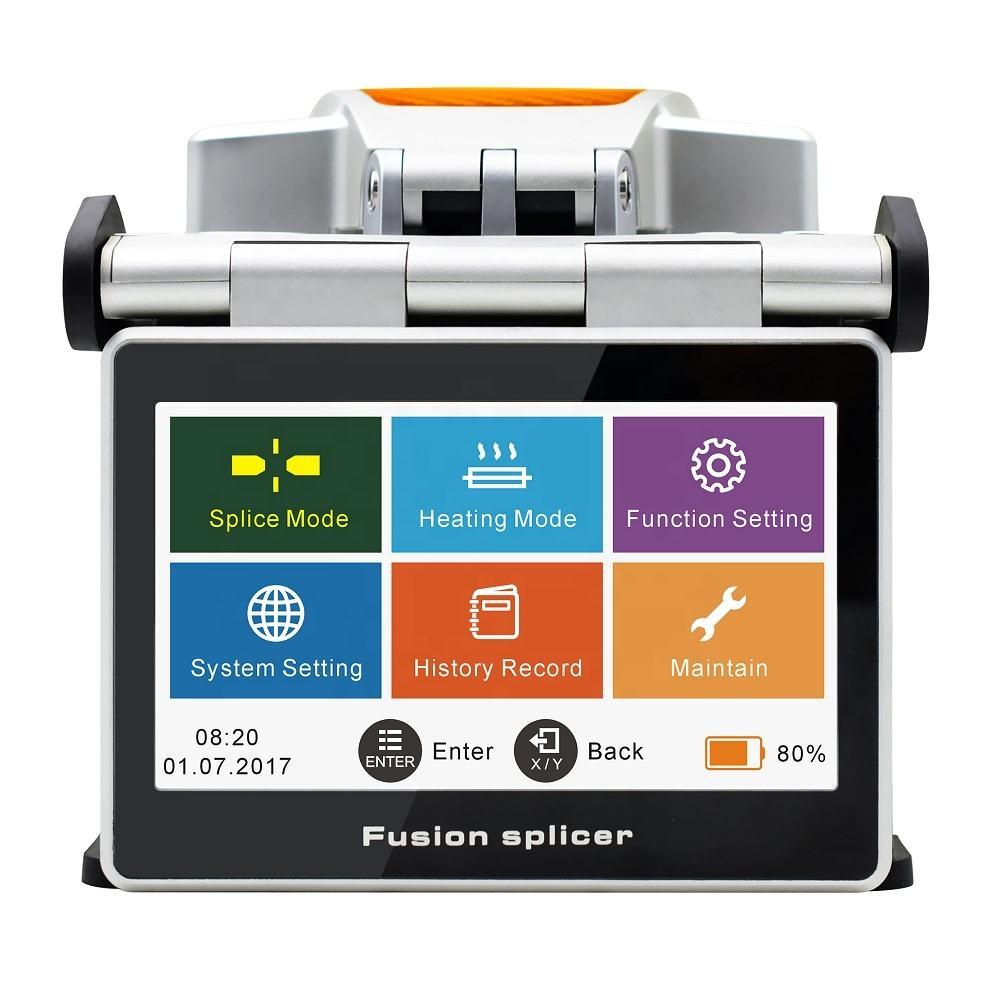

Graphical buttons and Smart GUI interface
Simultaneous X and Y views with 200 times magnification,300 times magnification X or Y view
Applicable Fibers | SM, MM, DS, NZDS, EDF |
Splicing Fiber Number | Single core |
Average Splicing Loss | 0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS),0.04dB(BIF/UBIF) |
Splicing Mode | Auto & Manual & Half Auto |
Splicing Setting | 100 groups customize |
Splicing Time | Typical 8s with standard SM fiber |
Heating Time | 24s |
Electrode Life | 2500 |
Tension Test | 2.0N(Standard) |
LCD | 5.0 inch color LCD |
Language | English or customize |
Fiber Magnification | X/Y:180 times,X or Y:360times |
Storage | 10000 groups |
Data Connector | USB 2.0 |
Power Supply | Li-ion battery or AC/DC input:13.5V |
Battery Capacity | Typical 200 cycles(splicing and heating) |
Environmental Conditions | -10~+50 (operation temperature),0~95% RH(humidity),0~5000(altitude) |
Dimension | 164mm * 141mm * 138mm |
Weight | 1.83kg |
