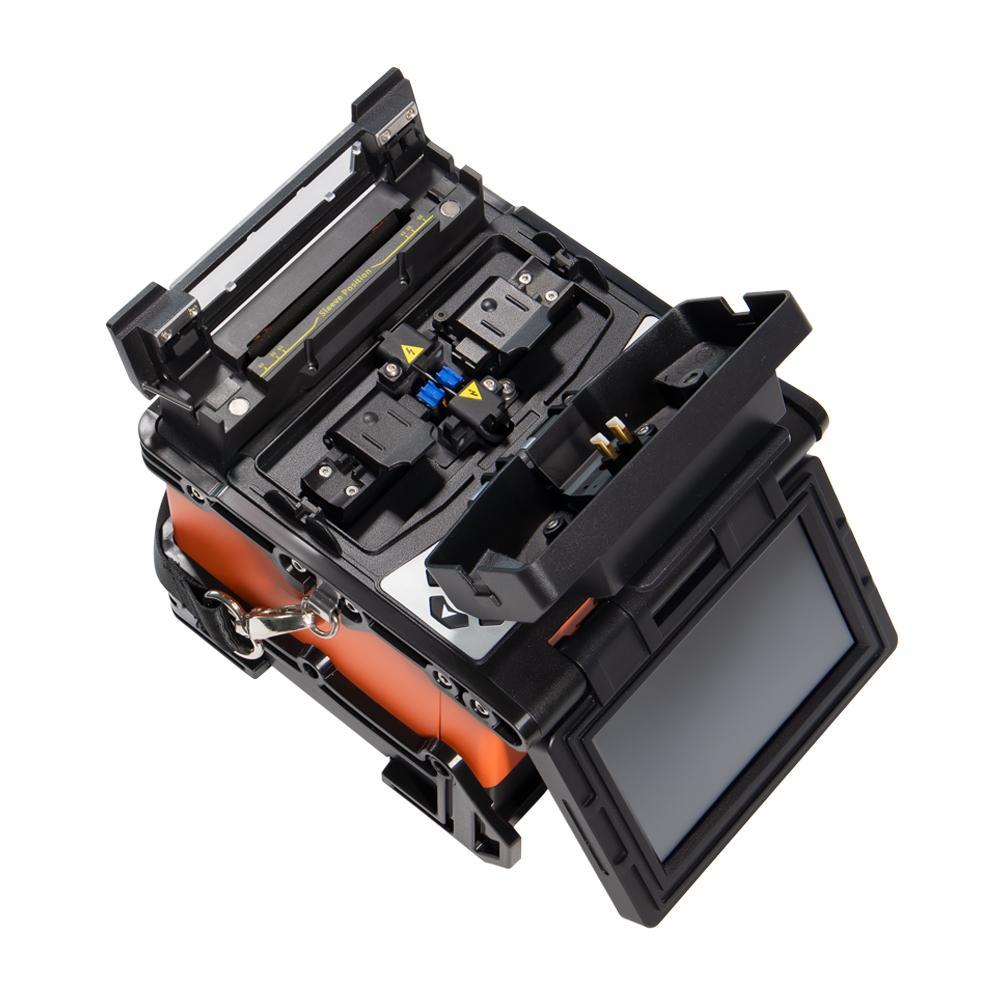

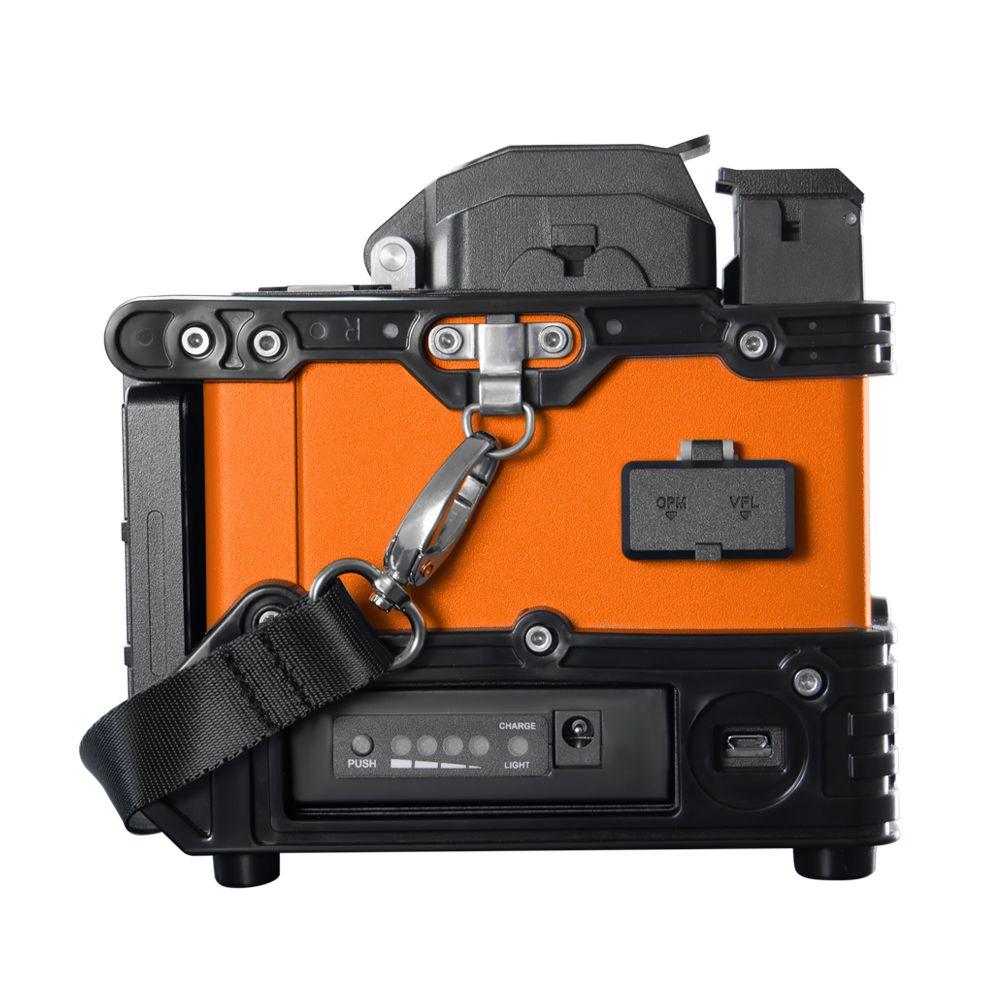

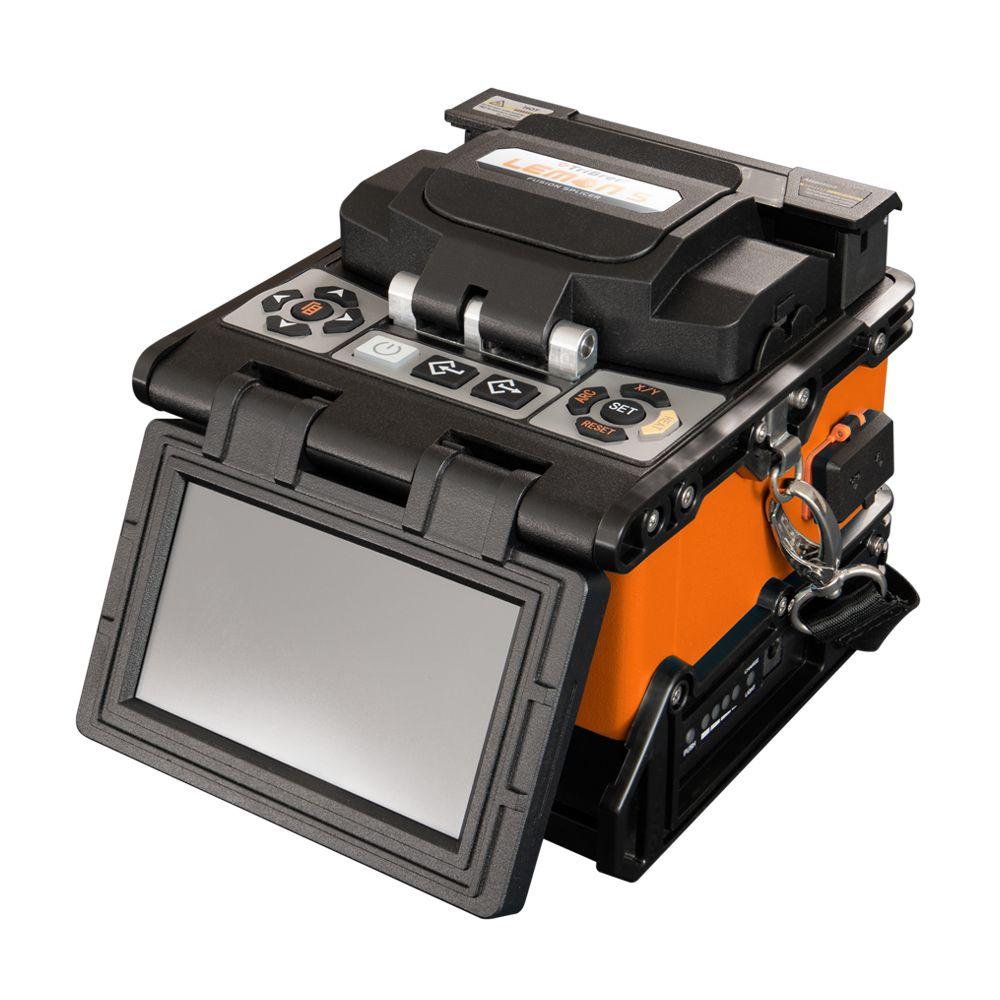

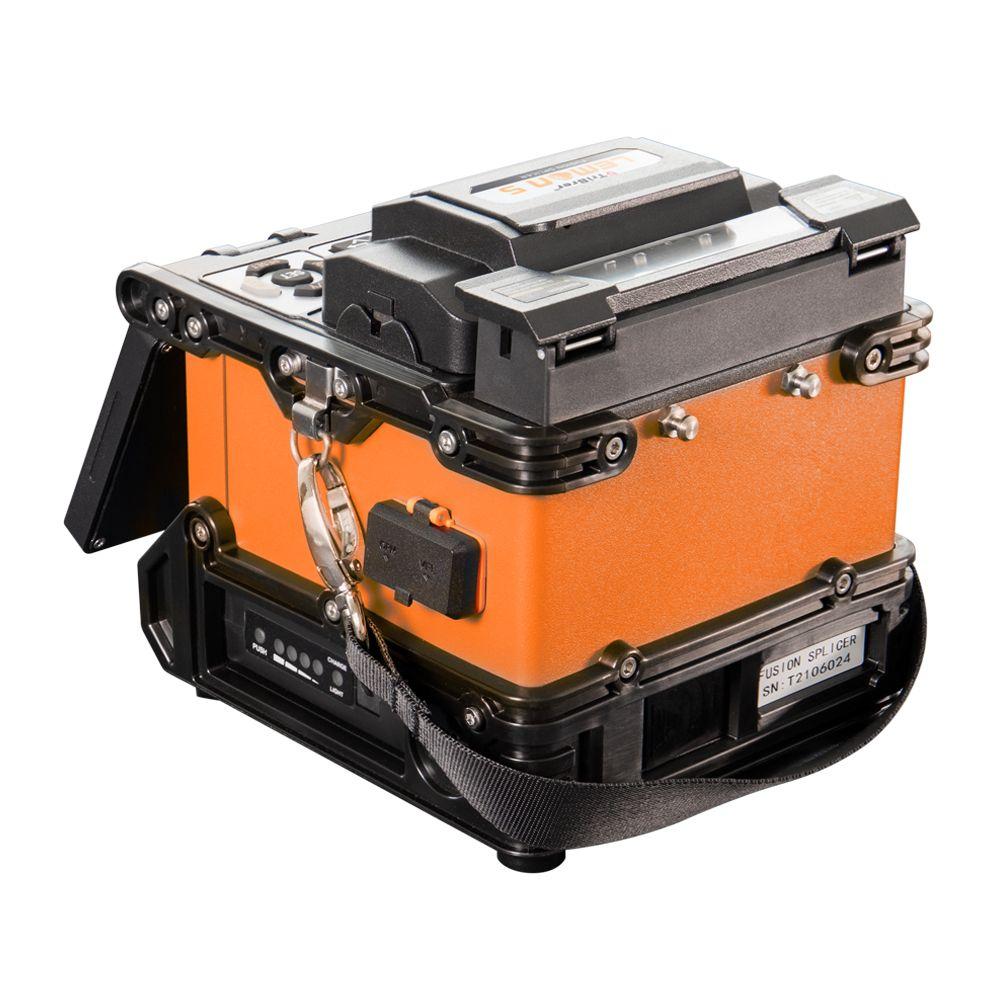

The Lemon 5 Fusion Splicer + CLV-N2 Fiber Cleaver Combo is a complete professional-grade solution designed for FTTH (Fiber To The Home), ISP networks, telecom maintenance, and fiber installation projects. This all-in-one kit ensures fast, stable, and low-loss fiber splicing with high precision alignment technology.

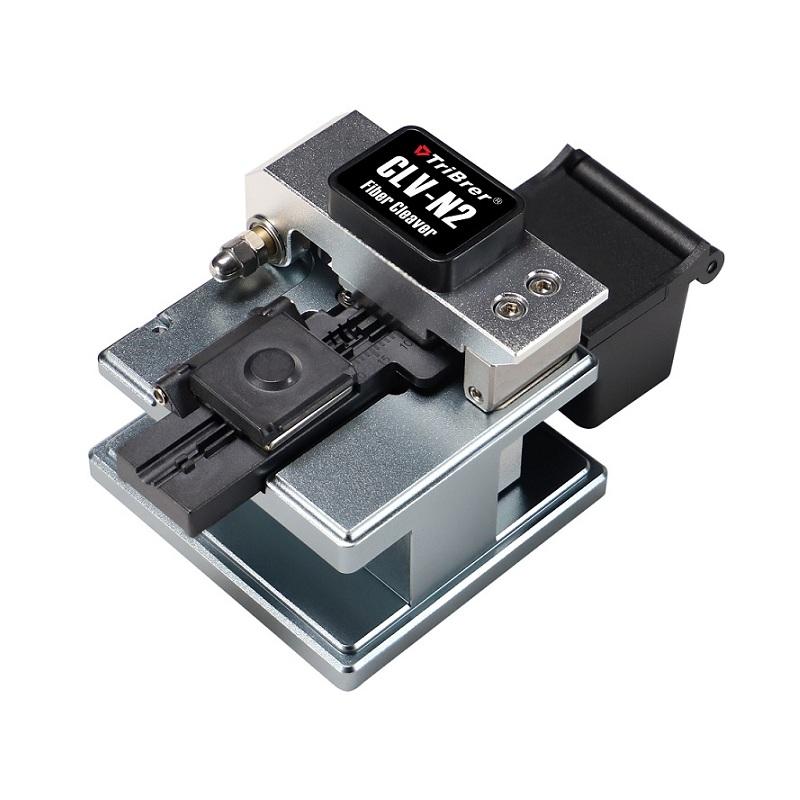

Built for field technicians and network engineers, the Lemon 5 splicer delivers reliable performance with automatic core alignment, fast heating system, and intelligent operation interface. Combined with the high-accuracy CLV-N2 cleaver, it guarantees clean fiber cuts for perfect splice quality every time.
SKU: DP-2443-GZZU
Categories: Splicer Machine, TriBrer

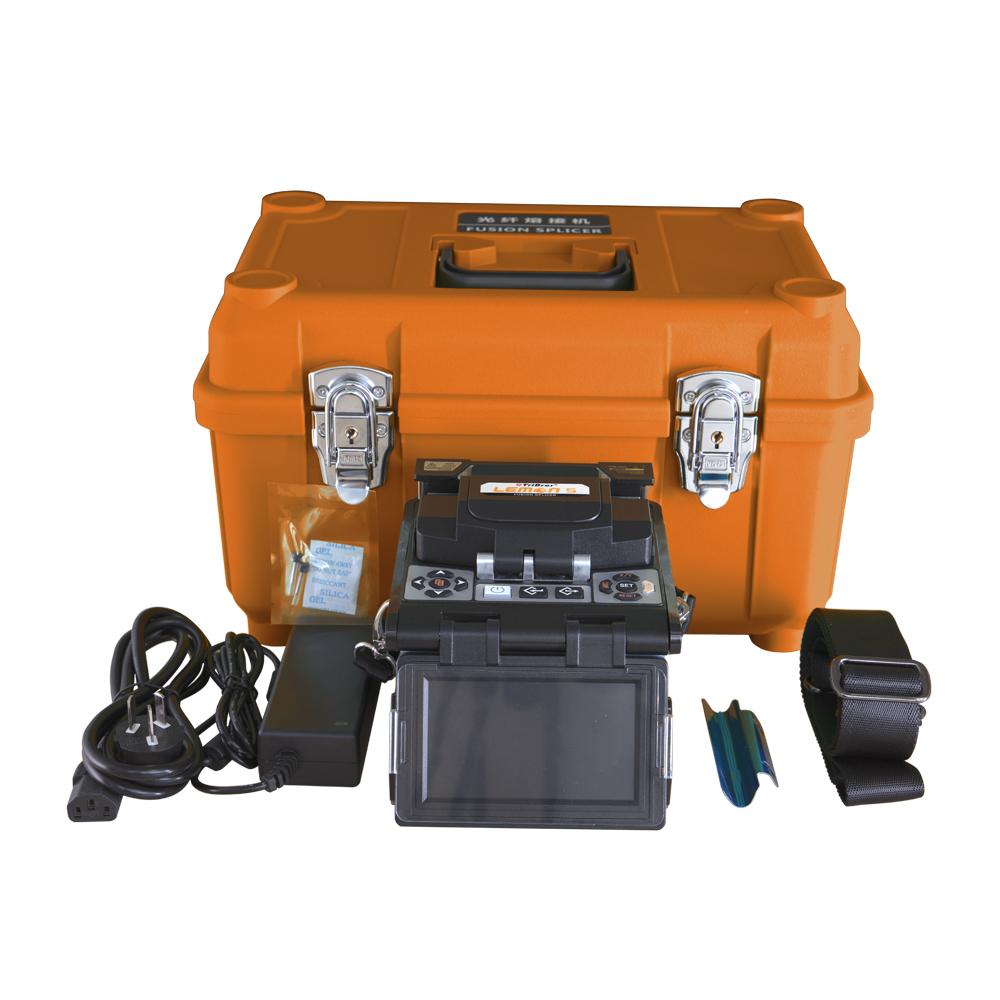

This combo gives you everything needed for professional fiber splicing in one kit, reducing installation time and improving splice quality. It is ideal for ISP technicians, telecom engineers, and fiber contractors who need reliable field performance.
Specification
| Applicable Fibers | SM, MM, DS, NZDS |
| Splicing Fiber Number | Single core |
| Average Splicing Loss | 0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS) |
| Cleaving Length | 8~16mm |
| Splicing Mode | Auto & Manual & Half Auto |
| Splicing Time | Typical 9s |
| Heating Time | Typical 30s |
| Electrode Life | Typical 3000 |
| Tension Test | 2.0N(Standard) |
| LCD | 4.3 inch touch screen |
| Fiber Magnification | X/Y:150 times, X or Y: 300 times |
| Storage | 8000 groups |
| Data transfer | USB |
| Power Supply | 5200mAh Li-ion Battery |
| Battery Capacity | Typical 300 cycles(splicing and heating) |
| Environmental Conditions | -10~+50℃ (operation temperature),0~95%RH(humidity), 0~5000(altitude) |
| Size | 150mm * 135mm * 142mm |
| Weight | 1.7kg(including battery) |
Key attributes
Model Number
| Lemon 5
| Type
| Fiber fusion splicer
|
Brand Name
| TriBrer
| Place of Origin
| Zhejiang, China
|
Use
| FTTx
| Warranty Time
| 1 year
|
Network
| None
| Product Name
| Lemon 5 Fusion Splicer |
LCD
| 4.3-inch touch screen | Splicing Time
| Typical 9s
|
Heating Time
| Typical 30s
| Fiber Type
| SM, MM, DS, NZDS
|
Splicing Fiber Number | Single core
| Data Transfer
| USB
|
Splicing Mode | Auto & Manual & Half Auto | Tension Test
| 2.0N(Standard)
|
Storage | 8000 groups |
|
|
Packaging and delivery
Selling Units
| Single item
| Single package size
| 41X34X29 cm
|
Single gross weight
| 5.500 kg
|
|
|
