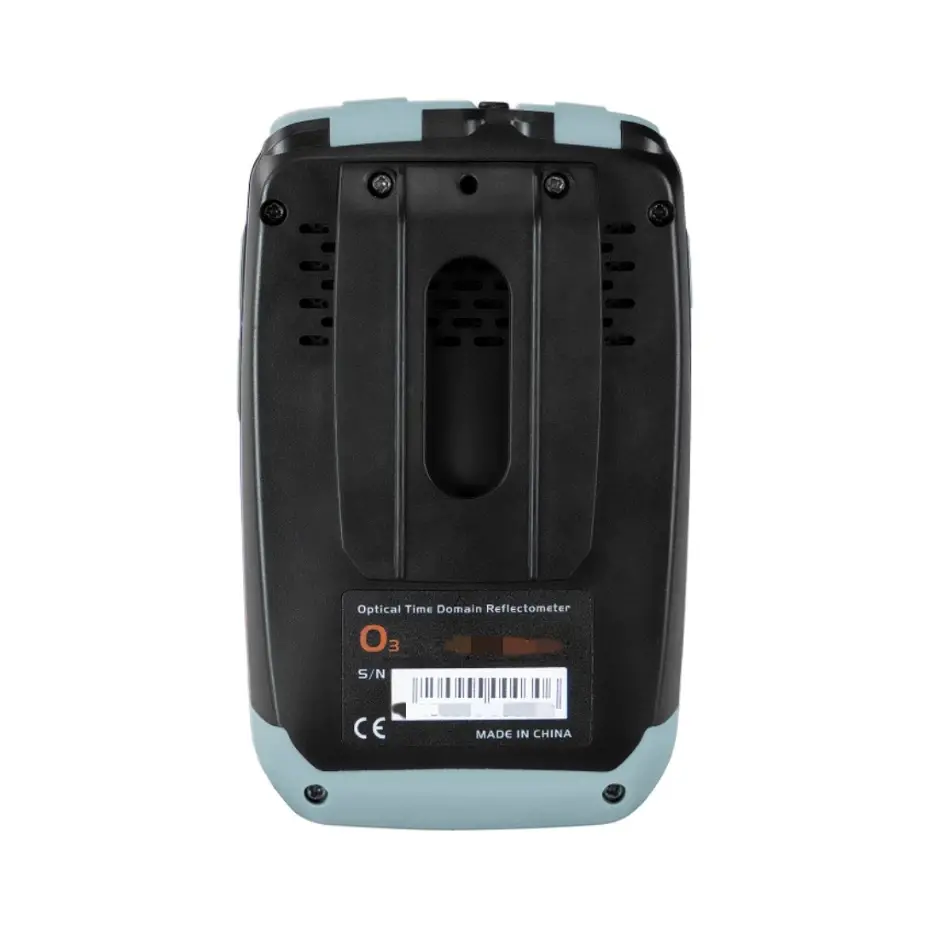

Optical Time Domain Reflectometer
Features
Model ① : O3-S3S5
Wavelength: 1310/1550nm
Dynamic range: 22/20dB
Accessories
● For model O3-S5L, standard accessories are, Host*1, Carrying bag*1, Calibration certificate*1
● For Model O3-S3S5, standard accessories are, Host*1, Carrying bag*1, Calibration certificate*1
Functions
Test loss, length, attenuation, broken, splicer, connector...in a fiber
Applications
FTTX, FTTH, FTTB
| Distance setting | 80km |
| Connector | SC/UPC or SC/APC |
| Pulse width | 5ns~20μs |
| Event dead zone | 3m |
| Attenuation dead zone | 12m |

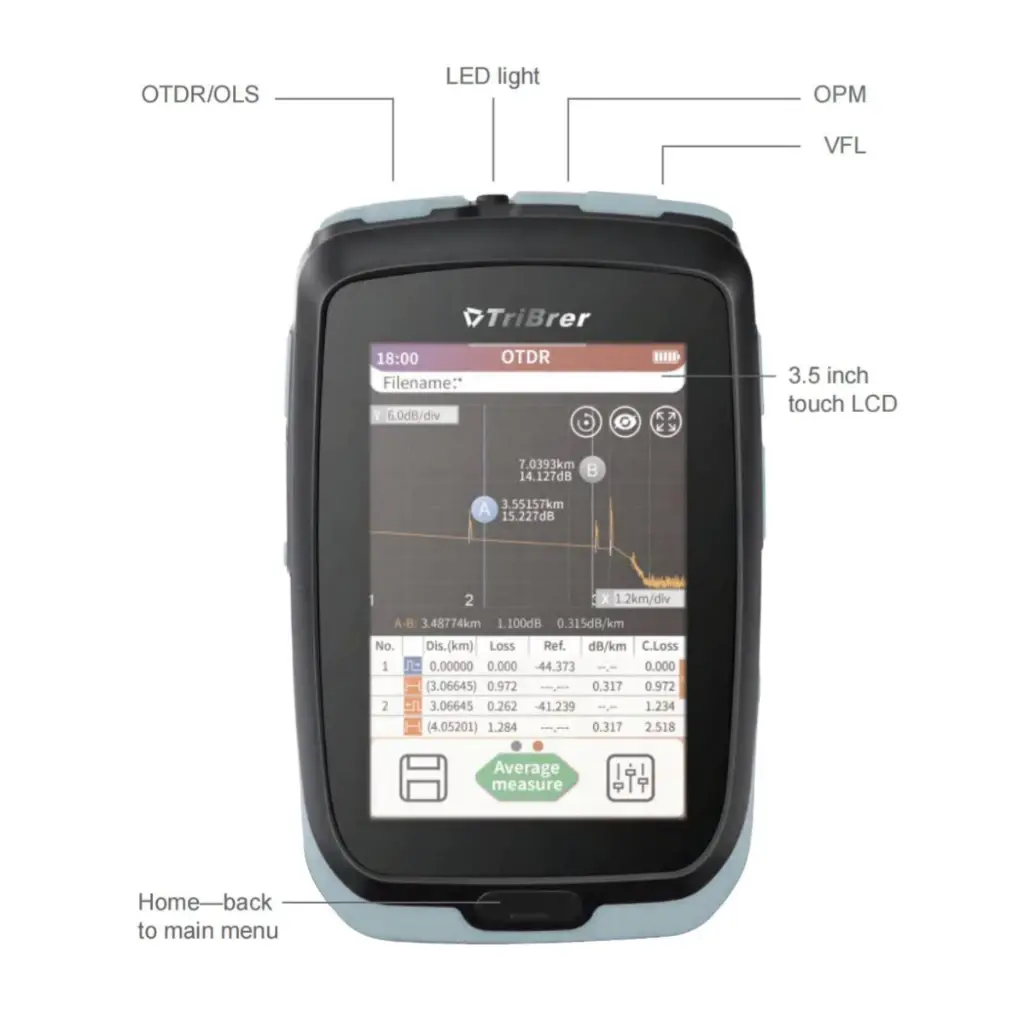

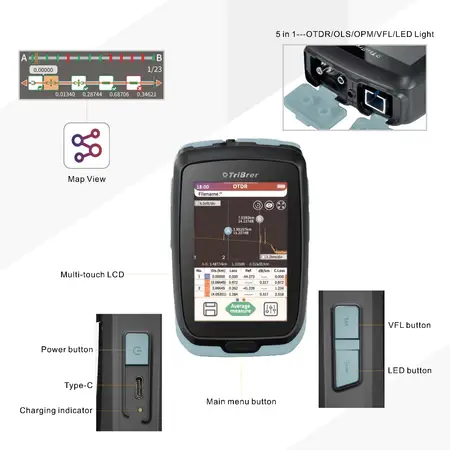

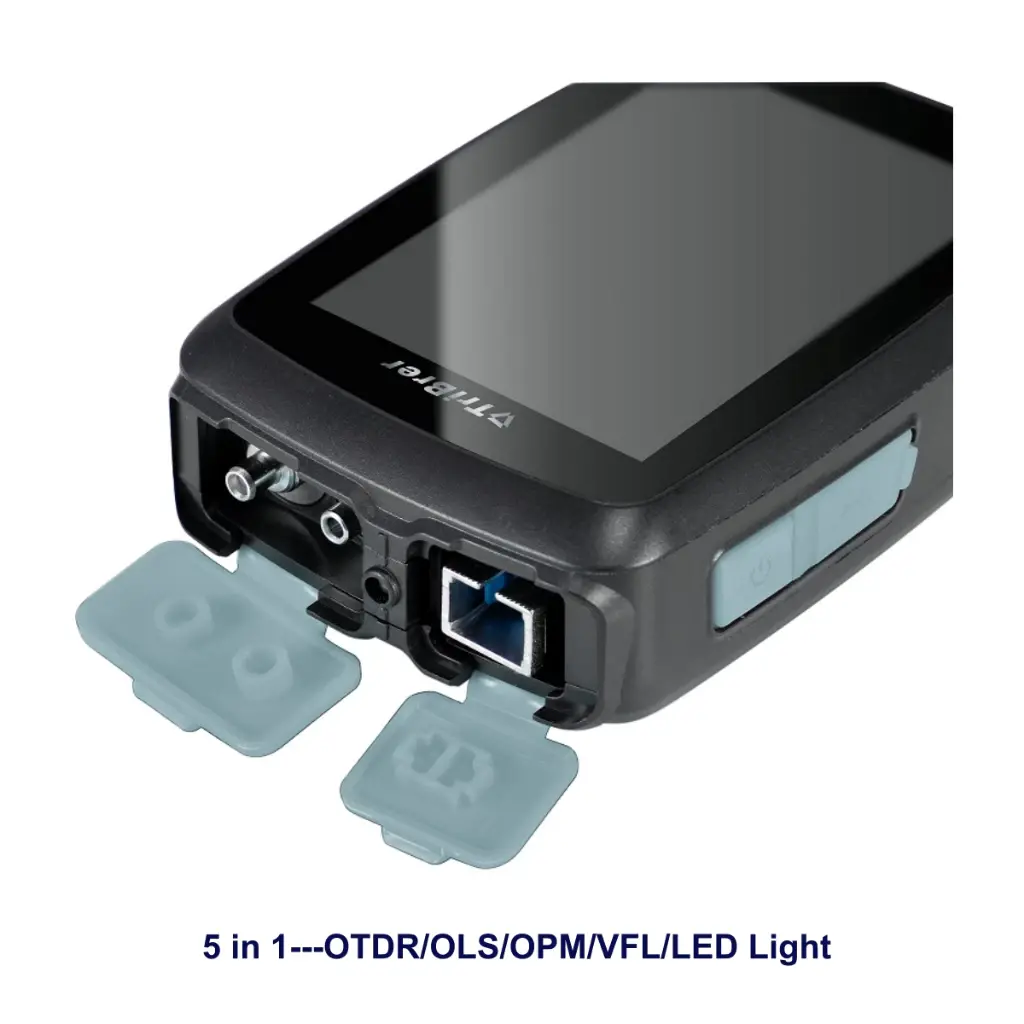

| OLS function | Same wavelength and connector as OTDR |
| OPM function | +26~-50dBm, 850/970/980/1270/1300/1310/1490/1550/1577/1625/1650nm, 2.5mm UPP |
| VFL function | 10mW, 2.5mm universal connector |
| Operating temperature | : 0~+50℃, <90% RH |
| Operating Humidity | -20~+70℃, <90% RH |
| Storage | : Internal memory |
| Connector Dirty Warning | Yes |
| Size | 120mmX76mmX38mm |
| Weight | About 210g |
