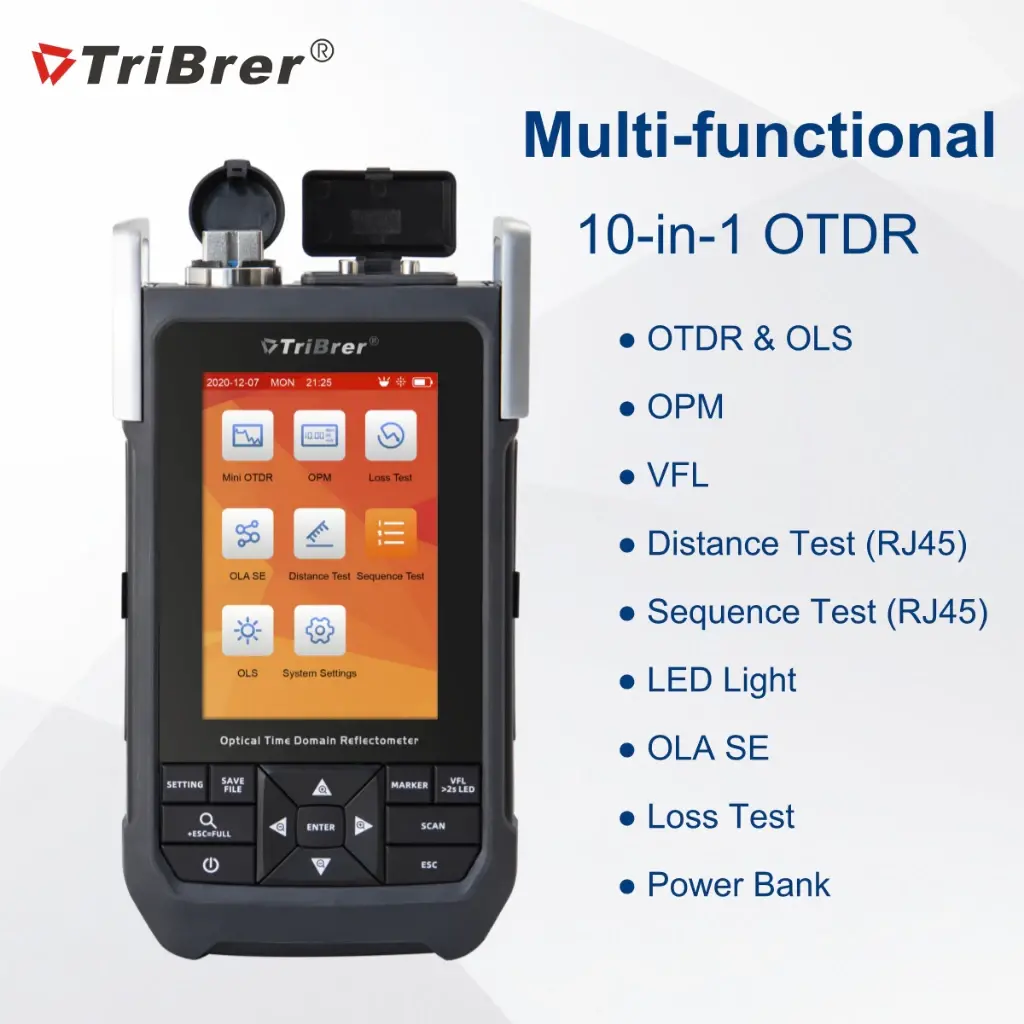

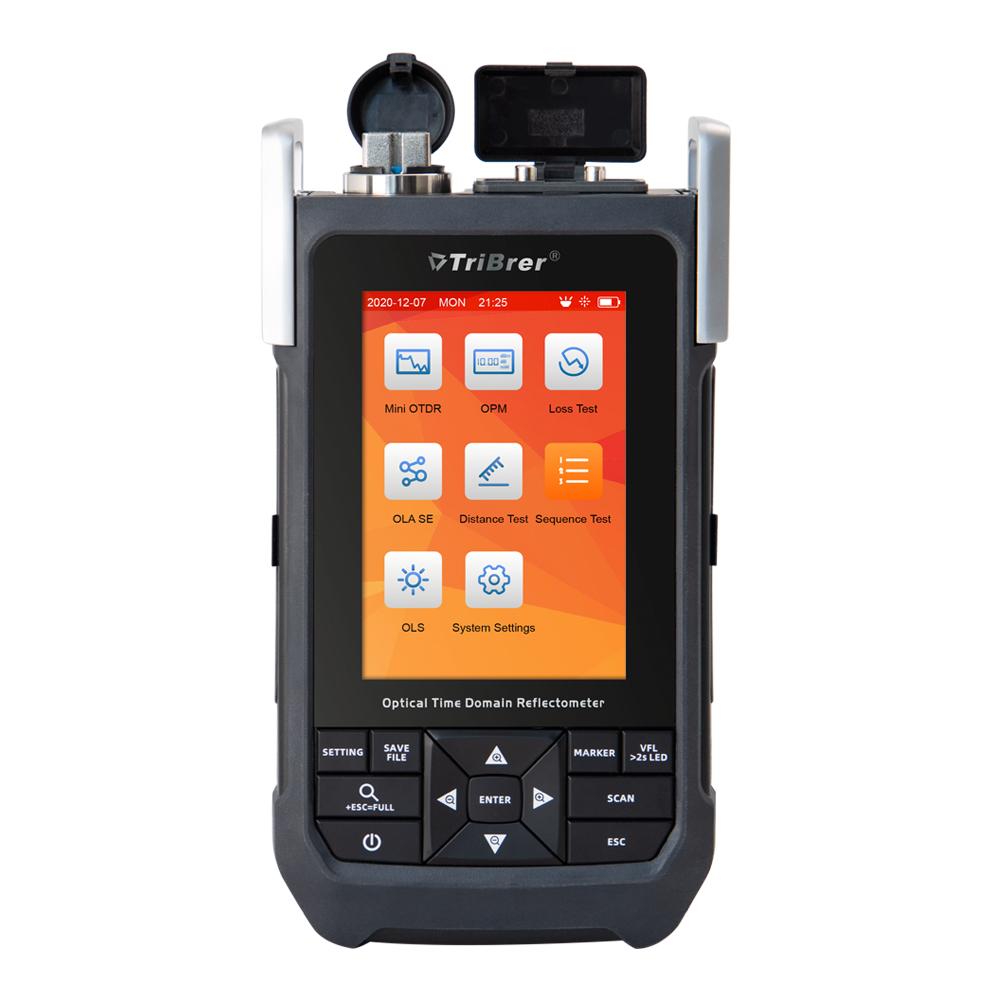

10-in-1 Multi-functions OTDR
Features

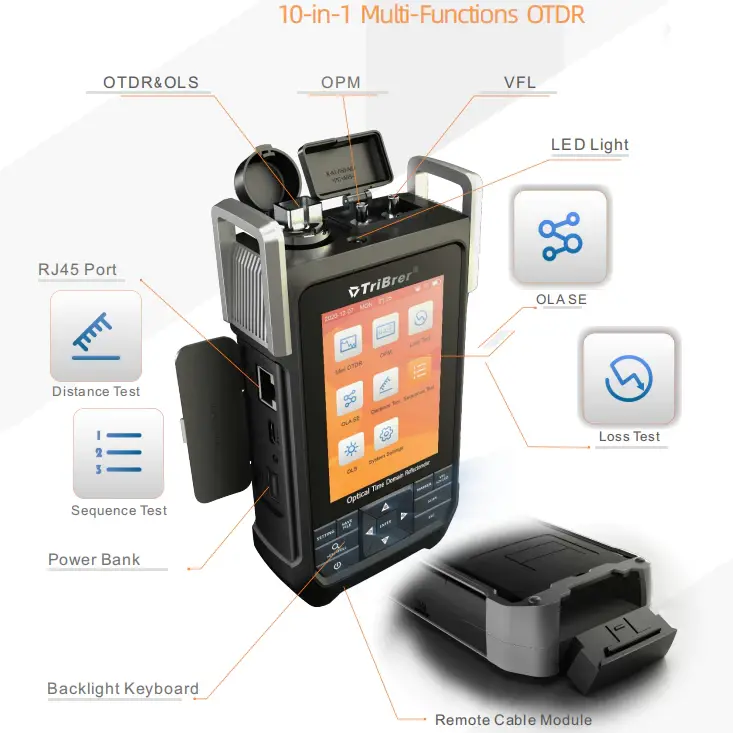

OTDR/OLS/OPM/VFL/LED Light/RJ45 Port (Distance Test, Sequence Test)/OLA SE/Loss Test/Backlight Keyboard/Remote Cable Module
Model ① : TB-700-SCA/TB-700-SCU
Wavelength: 1310/1550nm
Dynamic range: 22/20dB
Function
1. Find broken points on the fiber.
2. Testing loss, attenuation, and distance of the fiber.
Application
FTTX, FTTH, FTTB.
Accessories
Standard with, Host*1, Carrying Bag*1, Manual*1, Calibration Certificate*1, AC/DC Adapter*1(Type -C, China type)
| Distance setting | 80km |
| Connector | SC/APC for TB-700-SCA, SC/UPC for TB-700-SCU |
| Pulse width | 5ns~20μs |
| Event dead zone | 1m |
| Attenuation dead zone | 7m |
| OLS function | Same wavelength and connector as OTDR |
| OPM function | +26~-50dBm, 850/980/1270/1300/1310/1490/1550/1577/1625/1650nm, 2.5mm universal connector |
| VFL function | 10mW, 2.5mm universal connector |
| Storage | Internal memory |
| Connector Dirty Warning | Yes |
| Operating temperature | 0~+50℃, <90% RH |
| Operating Humidity | -20~+70℃, <90% RH |
| Size | 160*85*38mm |
| Weight | About 430g |
